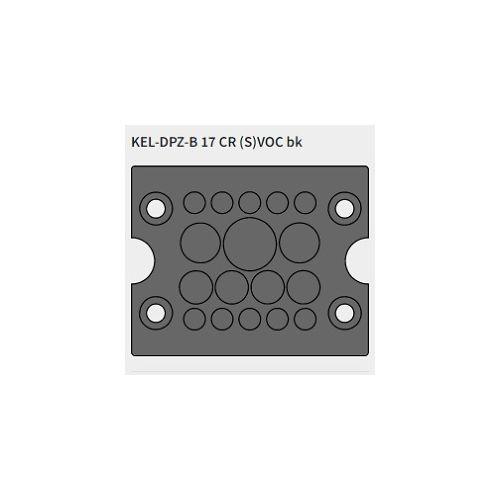

KEL-DPZ-B 17 CR (S)VOC bk | 50796.600 | Cable Entry Plates
KEL DPZ CR Multi Membrane cable entry plates, Number of cables:17, Clamping Range: 10 x 3.2 - 6.5mm + 4 x 5 - 10.2mm + 2 x 7.5 - 12mm + 1 x 9 - 16.2mm
| Complete Electronics Part No. | 50796600 |
|---|---|
| Manufacturers Part No. | 50796.600 |
| Product Type: | KEL-DPZ B CR |
| Number of Cables: | max 17 |
Description
KEL-DPZ CR multi-membrane cable entry plates
Available for cable diameters 1.5 - 22mm
- Max number of cables: 17
Clamping range:
10 x 3.2 - 6.5mm
4 x 5 - 10.2mm
2 x 7.5 - 12mm
1 x 9 - 16.2mm
- Length: 72.8mm
- Width: 58mm
- Height: 10mm
- Mounting Height: 10mm
- For round cable
- Cut Out Size:46 x 46mm
- No of screw holes: 4
- Diameter of screw holes: 5.7mm
- Materiat: Elastomer
- Base Frame Polyamide
- Base Frame Stainless Steel (V2A)
- Colour: Black (RAL 9001)
- Operating Temperature: -40°C to 100°C
- Flame Class: UL94-V0, self-extinguishing
- Silicone free
- Halogen free
- IP54, IP55, IP64, IP65, IP66
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17)
- Part Number 50796.600
- EAN 4251269327773
- Package Quantity: 5
