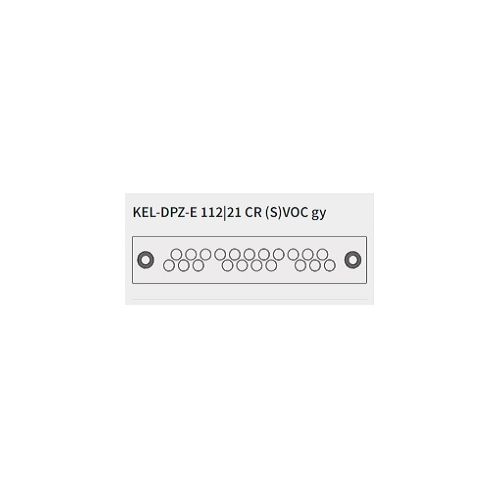

KEL-DPZ-E 112|21 CR (S)VOC gy | 43790.600 | Cable Entry Plates
KEL DPZ CR Multi Membrane cable entry plates, Number of cables:21, Clamping Range: 21 x 3.2 - 6.5mm
| Complete Electronics Part No. | 43790600 |
|---|---|
| Manufacturers Part No. | 43790.600 |
| Product Type: | KEL-DPZ E CR |
| Number of Cables: | max 21 |
Description
KEL-DPZ CR multi-membrane cable entry plates
Available for cable diameters 1.5 - 22mm
- Max number of cables: 21
- Clamping range:21 x 3.2 - 6.5mm
- Length: 147mm
- Width: 29mm
- Height: 14mm
- Mounting Height:14mm
- For round cable
- No of screw holes: 2
- Diameter of screw holes: 5.7mm
- Materiat: Elastomer
- Base Frame Polyamide
- Base Frame Stainless Steel (V2A)
- Colour: Grey (Similar to RAL 7035)
- Operating Temperature: -40°C to 100°C
- Flame Class: UL94-V0, self-extinguishing
- Silicone free
- Halogen free
- IP54, IP55, IP64, IP65, IP66
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17)
- Part Number 43790.600
- EAN 4251269327704
- Package Quantity: 5
