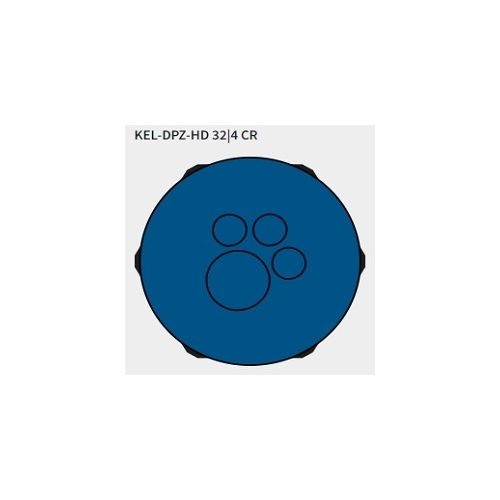

KEL-DPZ-HD 32|4 CR | 70351.601 | Cable Entry Plates
KEL DPZ HD round cable entry plates, Number of cables: 4, Clamping Range: 3 x 3.2 - 6.5mm +1 x 7.2 - 12.5, IP66/IP68
| Complete Electronics Part No. | 70351601 |
|---|---|
| Manufacturers Part No. | 70351.601 |
| Product Type: | KEL-DPZ-HD 32 |
| Number of Cables: | max 4 |
Description
KEL-DPZ-HD CR multi-membrane cable entry plates
Available for cable diameters 3.2 - 22.2mm
- Max number of cables: 4
- Clamping range: 3 x 3.2 - 6.5mm + 1 x 7.2-12.5mm
- Height: 22mm
- External Diameter: 44mm
- Mounting Height: 8mm
- For round cable
- Cut Out Size: 32.3mm
- Cut Out Size (metric): M32
- Thread: M32 x 1.5
- Thread Length: 14mm
- Materiat: Elastomer
- Base Frame: Polyamide
- Surface Roughness: Ra = 0,421 μm
- Colour: Blue (similar to RAL 5005)
- FDA-compliant elastomer in accordance with food approval 1935/2004/EG and (EU) 10/2011
- Operating Temperature: -40°C to 80°C
- Silicone free
- Halogen free
- Resistant to oil and mould
- High chemical resistance
- IP65/66/67/68
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Hexagonal locknut included in the delivery
- Hygienic design - free of dirt-collecting recesses
- Part Number 70351.601
- EAN: 4251269328657
- Package Quantity: 5
