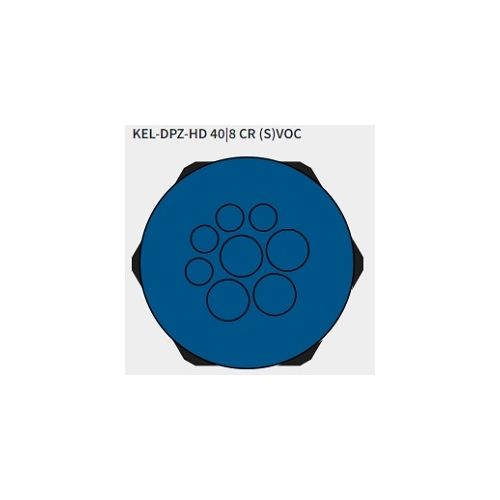

KEL-DPZ-HD 40|8 CR (S)VOC | 70354.600 | Cable Entry Plates
KEL DPZ HD round cable entry plates, Number of cables: 8, Clamping Range: 4 x 3.2 - 6.5mm + 4 x 5 - 10.2mm, IP66/IP68
| Complete Electronics Part No. | 70354600 |
|---|---|
| Manufacturers Part No. | 70354.600 |
| Product Type: | KEL-DPZ-HD 40 |
| Number of Cables: | max 8 |
Description
KEL-DPZ-HD CR multi-membrane cable entry plates
Available for cable diameters 3.2 - 22.2mm
- Max number of cables: 8
- Clamping range: 7 x 3.2 - 6.5mm
- Height: 22mm
- External Diameter: 52mm
- Mounting Height: 8mm
- For round cable
- Cut Out Size:40.4mm
- Cut Out Size (metric): M40
- Thread: M40 x 1.5
- Thread Length: 14mm
- Materiat: Elastomer
- Base Frame: Polyamide
- Surface Roughness: Ra = 0,421 μm
- Colour: Blue (similar to RAL 5005)
- FDA-compliant elastomer in accordance with food approval 1935/2004/EG and (EU) 10/2011
- Operating Temperature: -40°C to 80°C
- Silicone free
- Halogen free
- Resistant to oil and mould
- High chemical resistance
- IP65/66/67/68
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17)
- Hexagonal locknut included in the delivery
- Hygienic design - free of dirt-collecting recesses
- Part Number 70354.600
- EAN: 4251269328565
- Package Quantity: 5
