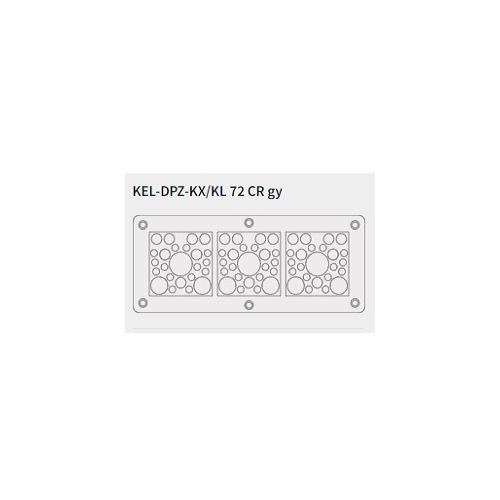

KEL-DPZ-KX/KL 72 CR gy | 43675.001.601 | Cable Entry Plates
KEL DPZ CR Multi Membrane cable entry plates, Number of cables:72, make a small hole in the thin membrane, push the cables through
| Complete Electronics Part No. | 43675001601 |
|---|---|
| Manufacturers Part No. | 43675.001.601 |
| Product Type: | KEL-DPZ KX/KL CR |
| Number of Cables: | max 72 |
Description
KEL-DPZ CR multi-membrane cable entry plates
Available for cable diameters 1.5 - 22mm
- Max number of cables: 72
Clamping range:
42 x 3.2 - 6.5mm
21 x 5 - 10mm
6 x 9 -16.2mm
3 x 16 - 22mm
- Length: 221mm
- Width: 90mm
- Height: 4mm
- Mounting Height:4mm
- For round cable
- No of screw holes: 6
- Diameter of screw holes: 5.1mm
- Materiat: Elastomer
- Base Frame Polyamide
- Base Frame Stainless Steel (V2A)
- Colour: Grey (Similar to RAL 7035)
- Operating Temperature: -40°C to 100°C
- Flame Class: UL94-V0, self-extinguishing
- Silicone free
- Halogen free
- IP54, IP55, IP64, IP65, IP66
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Part Number 43675.001.601
- EAN 4251269327919
- Package Quantity: 5
