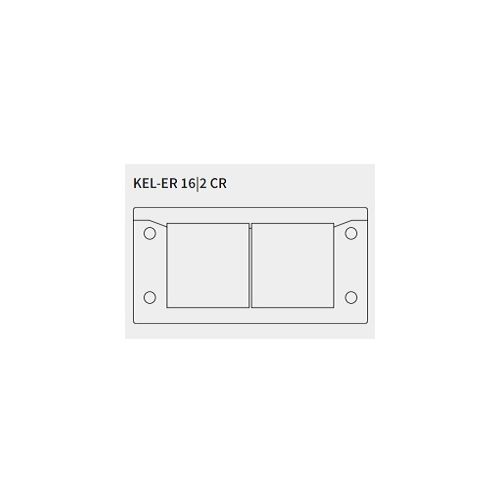

KEL-ER 16|2 CR | 48162.601 | Split Cable Entry Frame
Split Cable Entry Frame, Max 2 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm
| Complete Electronics Part No. | 48162601 |
|---|---|
| Manufacturers Part No. | 48162.601 |
| Product Type: | KEL-ER 16 CR |
| Number of Cables: | max 2 |
Description
Split cable entry system
For routing and sealing cables with connectors
- Max. no. of cables:2
- Max. cable diameter: 35mm
- Length: 120mm
- Width: 58mm
- Height: 17mm
- Mounting Height: 17mm
- Cut out size: 86 x 36mm
- No. of screw holes: 4
- Diameter of screw holes: 5.8mm
- Screw material: Mild steel, galvanically zinc plated
- Suitable for grommets: 2 x KT Large
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Part No.48162.601
- EAN: 4251269325823
- Package Quantity: 5
