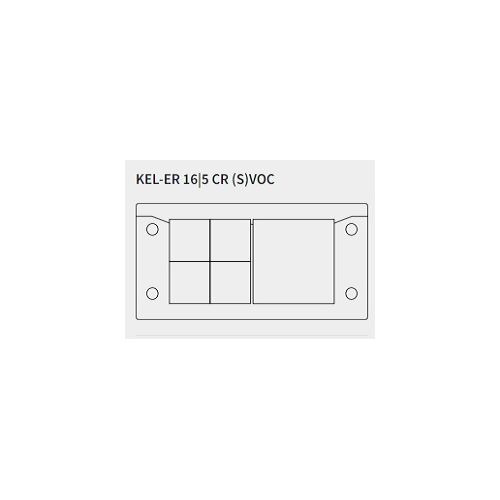

KEL-ER 16|5 CR (S)VOC | 48165.600 | Split Cable Entry Frame
Split Cable Entry Frame, Max 5 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm
| Complete Electronics Part No. | 48165600 |
|---|---|
| Manufacturers Part No. | 48165.600 |
| Product Type: | KEL-ER 16 CR |
| Number of Cables: | max 5 |
Description
Split cable entry system
For routing and sealing cables with connectors
- Max. no. of cables:5
- Max. cable diameter: 35mm
- Length: 120mm
- Width: 58mm
- Height: 17mm
- Mounting Height: 17mm
- Cut out size: 86 x 36mm
- No. of screw holes: 4
- Diameter of screw holes: 5.8mm
- Screw material: Mild steel, galvanically zinc plated
- Suitable for grommets: 4 x KT small, 1 x KT Large
- Tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17)
- Part No.48165.600
- EAN: 4251269325694
- Package Quantity: 5
