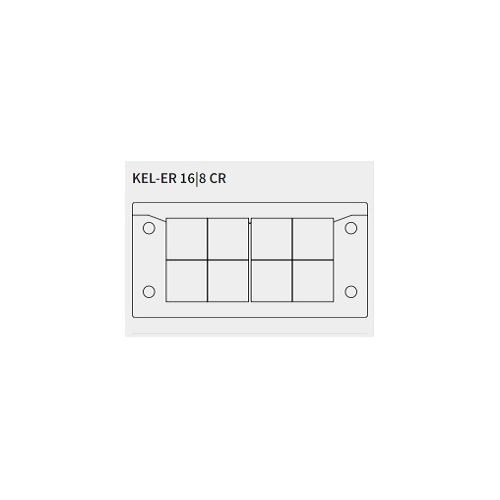

KEL-ER 16|8 CR | 48168.601 | Split Cable Entry Frame

Split Cable Entry Frame, Max 8 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm
More Information
Complete Electronics Part No. 48168601
Manufacturers Part No. 48168.601
Product Type: KEL-ER 16 CR
Number of Cables: max 8
Description

Split cable entry system

For routing and sealing cables with connectors

  • Max. no. of cables:8
  • Max. cable diameter: 16mm
  • Length: 120mm
  • Width: 58mm
  • Height: 17mm
  • Mounting Height: 17mm
  • Cut out size: 86 x 36mm
  • No. of screw holes: 4
  • Diameter of screw holes: 5.8mm
  • Screw material: Mild steel, galvanically zinc plated
  • Suitable for grommets: 8 x KT small
  • Certified for particle emission for cleanroom class 1 according to ISO 14644-1
  • Part No.48168.601
  • EAN: 4251269325847
  • Package Quantity: 5
