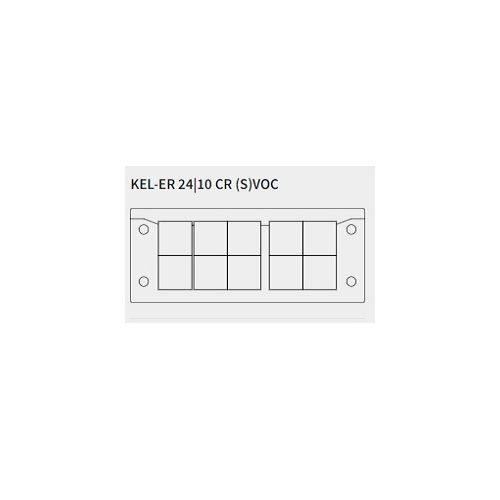

KEL-ER 24|10 CR (S)VOC | 48241.600 | Split Cable Entry Frame
Split Cable Entry Frame, Max 10 cables, Cut out size 112 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm
| Complete Electronics Part No. | 48241600 |
|---|---|
| Manufacturers Part No. | 48241.600 |
| Product Type: | KEL-ER 24 CR |
| Number of Cables: | max 10 |
Description
Split cable entry system
For routing and sealing cables with connectors
- For max. no. of cables:10
- Max. cable diameter: 16mm
- Length: 147mm
- Width: 58mm
- Height: 17mm
- Mounting Height: 17mm
- Cut out size: 112 x 36mm
- No. of screw holes: 4
- Diameter of screw holes: 5.8mm
- Screw material: Mild steel, galvanically zinc plated
- Suitable for grommets: 10 x KT small
- Tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17)
- Part No.48241.600
- EAN: 4251269325755
- Package Quantity: 5
