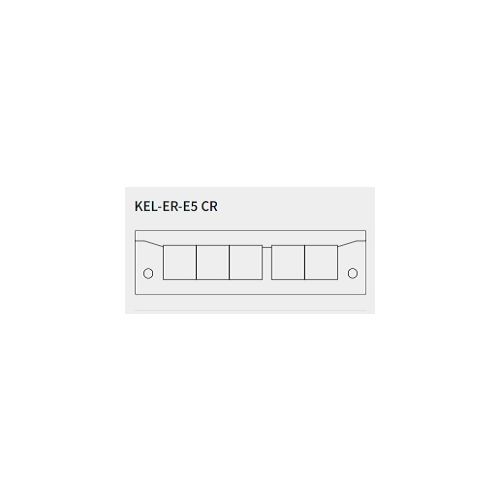

KEL-ER-E5 CR | 48250.601 | Split Cable Entry Frame
Split Cable Entry Frame, Max 5 cables, Cut out size 112 x 24mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm
| Complete Electronics Part No. | 48250601 |
|---|---|
| Manufacturers Part No. | 48250.601 |
| Product Type: | KEL-ER-E CR |
| Number of Cables: | max 5 |
Description
Split cable entry system
For routing and sealing cables with connectors
- Max. no. of cables:5
- Max. cable diameter: 16mm
- Length: 147mm
- Width: 39mm
- Height: 17mm
- Mounting Height: 17mm
- Cut out size: 112 x 24mm
- No. of screw holes: 2
- Diameter of screw holes: 5.8mm
- Screw material: Mild steel, galvanically zinc plated
- Suitable for grommets: 5 x KT Small
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Part No.48250.601
- EAN: 4251269325939
- Package Quantity: 5
