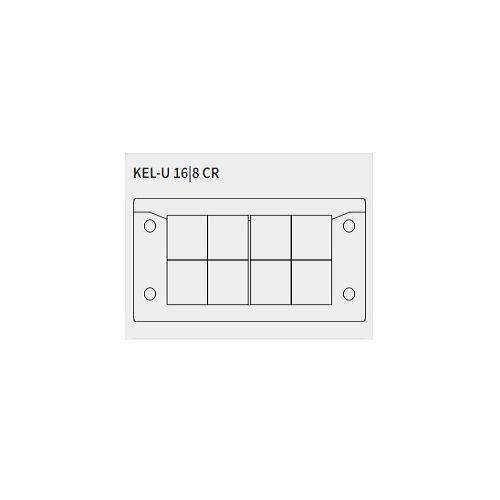

KEL-U-16|8 CR | 54168.601 | Split Cable Entry Frame

Split Cable Entry Frame, Max 32 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm
More Information
Complete Electronics Part No 54168601
Manufacturers Part No. 54168.601
Product Type KEL-U 16 CR
Number of Cables max 32
Description

Split cable entry system

For routing and sealing cables with connectors

  • Max. no. of cables:32
  • Max. cable diameter: 17mm
  • Length: 120mm
  • Width: 58mm
  • Height: 17mm
  • Mounting Height: 17mm
  • Cut out size: 86 x 36mm
  • No. of screw holes: 4
  • Diameter of screw holes: 5.8mm
  • Screw material: Mild steel, galvanically zinc plated
  • Suitable for grommets: 8 x KT Small, 2
  • Certified for particle emission for cleanroom class 1 according to ISO 14644-1
  • Material: Polyamide
  • Flame Class: UL94 VO Self Extinguishing
  • Width: 59mm

  • Operating Temperature: -40 C° to 140 C°

  • Vibration proof, UV-resistant, silicone free, anti-corrosive (V2A versions), halogen free

  • Snap-in with KEL-SNAP,Screw type mounting

  • Material: Polyamide

  • Flame Class: UL94 VO Self Extinguishing

  • Operating Temperature: -40 C° to 140 C°

  • Vibration proof, UV-resistant, silicone free, anti-corrosive (V2A versions), halogen free

  • Snap-in with KEL-SNAP,Screw type mounting

  • Part No.54168.601

  • EAN: 4251269326080

  • Package Quantity: 5
