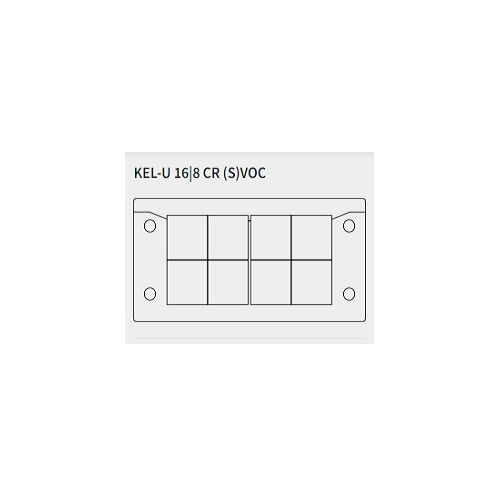

KEL-U-16|8 CR (S)VOC | 54168.600 | Split Cable Entry Frame
Split Cable Entry Frame, Max 32 cables, Cut out size 86 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm
| Complete Electronics Part No. | 54168600 |
|---|---|
| Manufacturers Part No. | 54168.600 |
| Product Type: | KEL-U 16 CR |
| Number of Cables: | max 32 |
Description
Split cable entry system
For routing and sealing cables with connectors
- Max. no. of cables:32
- Max. cable diameter: 17mm
- Length: 120mm
- Width: 58mm
- Height: 17mm
- Mounting Height: 17mm
- Cut out size: 86 x 36mm
- No. of screw holes: 4
- Diameter of screw holes: 5.8mm
- Screw material: Mild steel, galvanically zinc plated
- Suitable for grommets: 8 x KT Small, 2
- Material: Polyamide
- Flame Class: UL94 VO Self Extinguishing
-
Width: 59mm
-
Operating Temperature: -40 C° to 140 C°
- Tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1
-
Vibration proof, UV-resistant, silicone free, anti-corrosive (V2A versions), halogen free
-
Snap-in with KEL-SNAP,Screw type mounting
-
Material: Polyamide
-
Flame Class: UL94 VO Self Extinguishing
-
Operating Temperature: -40 C° to 140 C°
-
Vibration proof, UV-resistant, silicone free, anti-corrosive (V2A versions), halogen free
- Certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17)
-
Snap-in with KEL-SNAP,Screw type mounting
-
Part No.54168.600
-
EAN: 4251269325984
-
Package Quantity: 5
