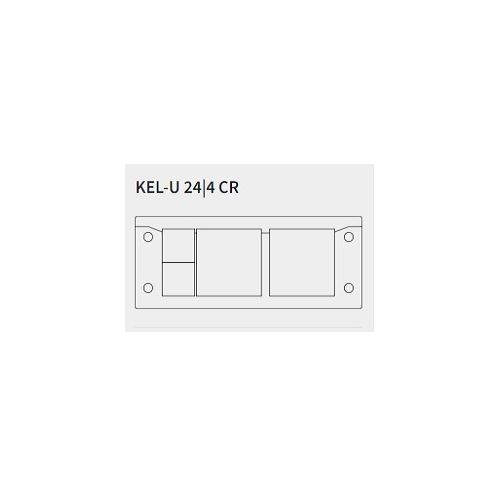

KEL-U-24|4 CR | 54244.601 | Split Cable Entry Frame
Split Cable Entry Frame, Max 6 cables, Cut out size 112 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm
| Complete Electronics Part No. | 54244601 |
|---|---|
| Manufacturers Part No. | 54244.601 |
| Product Type: | KEL-U 24 CR |
| Number of Cables: | max 6 |
Description
Split cable entry system
For routing and sealing cables with connectors
- Max. no. of cables:6
- Max. cable diameter: 35mm
- Length: 147mm
- Width: 58mm
- Height: 17mm
- Mounting Height: 17mm
- Cut out size: 112 x 36mm
- No. of screw holes: 4
- Diameter of screw holes: 5.8mm
- Screw material: Mild steel, galvanically zinc plated
- Suitable for grommets: 2 x KT Small, 2 x KT Large
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Material: Polyamide
- Flame Class: UL94 VO Self Extinguishing
-
Width: 59mm
-
Operating Temperature: -40 C° to 140 C°
-
Vibration proof, UV-resistant, silicone free, anti-corrosive (V2A versions), halogen free
-
Snap-in with KEL-SNAP,Screw type mounting
-
Material: Polyamide
-
Flame Class: UL94 VO Self Extinguishing
-
Width: 59mm
-
Operating Temperature: -40 C° to 140 C°
-
Vibration proof, UV-resistant, silicone free, anti-corrosive (V2A versions), halogen free
-
Snap-in with KEL-SNAP,Screw type mounting
-
Part No.54244.601
-
EAN: 4251269326141
-
Package Quantity: 5
