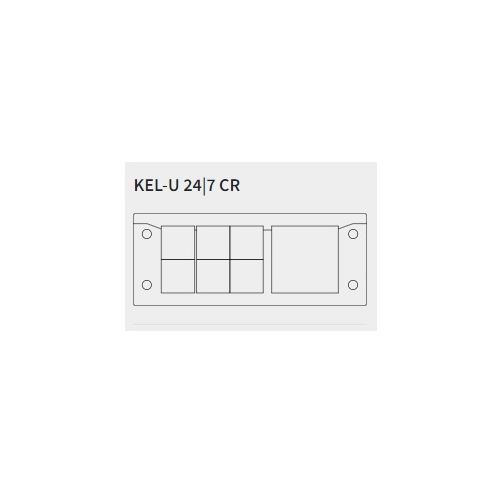

KEL-U-24|7 CR | 54247.601 | Split Cable Entry Frame

Split Cable Entry Frame, Max 25 cables, Cut out size 112 x 36mm, Vibration proof, UV Resistant, Screw type mounting, Mounting Height 17mm
More Information
Complete Electronics Part No. 54247601
Manufacturers Part No. 54247.601
Product Type: KEL-U 24 CR
Number of Cables: max 25
Description

Split cable entry system

For routing and sealing cables with connectors

  • Max. no. of cables:25
  • Max. cable diameter: 35mm
  • Length: 147mm
  • Width: 59mm
  • Height: 17mm
  • Mounting Height: 17mm
  • Cut out size: 112 x 36mm
  • No. of screw holes: 4
  • Diameter of screw holes: 5.8mm
  • Screw material: Mild steel, galvanically zinc plated
  • Suitable for grommets: 6 x KT Small, 1 x KT Large
  • Certified for particle emission for cleanroom class 1 according to ISO 14644-1
  • Material: Polyamide
  • Flame Class: UL94 VO Self Extinguishing
  • Width: 59mm
  • Operating Temperature: -40 C° to 140 C°
  • Vibration proof, UV-resistant, silicone free, anti-corrosive (V2A versions), halogen free
  • Snap-in with KEL-SNAP,Screw type mounting
  • Part No.54247.601
  • EAN: 4251269326158
  • Package Quantity: 5
