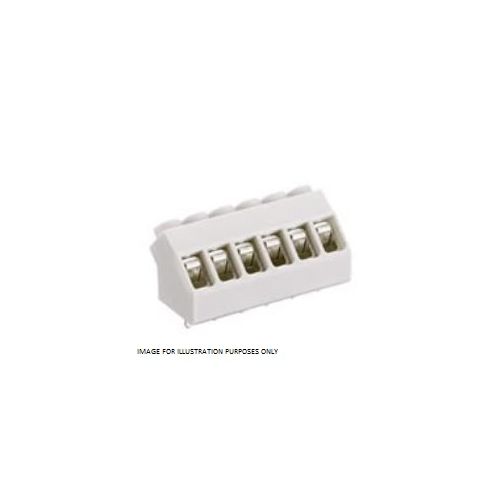

KRESW12 | KRESW 12 | Terminal Block
12 Pole Screw terminal block, clamp with wire protector
| Complete Electronics Part No. | KRESW12 |
|---|---|
| Manufacturers Part No. | KRESW 12 |
| Terminal Block Type: | Screw |
| Number Of Positions: | 12 |
Description
KRESW 12
- 12 way Screw terminal block,
- Clamp with wire protector,
- 45° angular,
- Consecutive placement without loss of pitch
- Temperature range -25 °C/+125 °C
- Insulating body PA, V2 according to UL 94
- Clamp CuZn, pre-nickel and tin-plated
- Wire protector CuSn, pre-nickel and tin-plated
- Screw steel, zinck-plated and chromated
- Screw M2.6
- Electrical data (at Tamb 20 °C)
- Rated current 15 A at Tamb 100 °C (VDE), 10/20 A (UL)2
- Rated voltage 250 V AC (VDE), 150/300 V (UL)2 Insulation resistance > 1 GΩ
