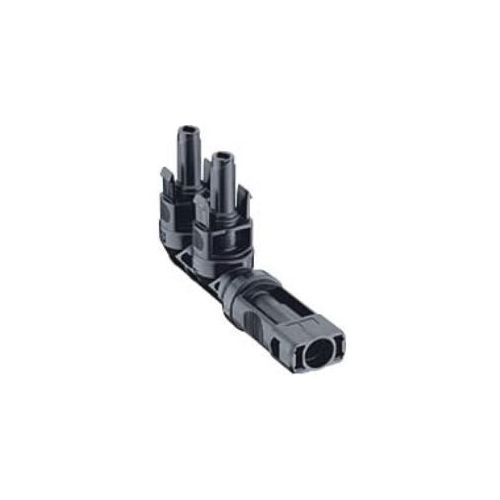

LC4CP235ITW02 (FFM) | PV Connector (FFM)
Photovoltaic branch connector - plug-socket-socket
| Complete Electronics Part No. | LC4CP235ITW02(Fffm) |
|---|---|
| Manufacturers Part No. | LC4-CP 235 IT W02 (F f-f-m) |
Description
LC4-CP 235 IT W02 ( f-f-m)
- Photovoltaic branch connector
- plug-socket-socket
- Contact resistance ≤ 1 mΩ
- Rated current (IEC) 30 A at Tamb 85 °C Rated current (UL) 35 A at Tamb 20 °C
- Rated voltage 1000 V DC (IEC)/600 V DC (UL)
- Overvoltage category III (8 kV) Material group4 IIIa (IEC)/3 (UL) (CTI ≥ 225)
- Temperature range -40 °C/+85 °C (IEC) -40 °C/+90 °C (UL) (+125 °C upper limit temperature)
