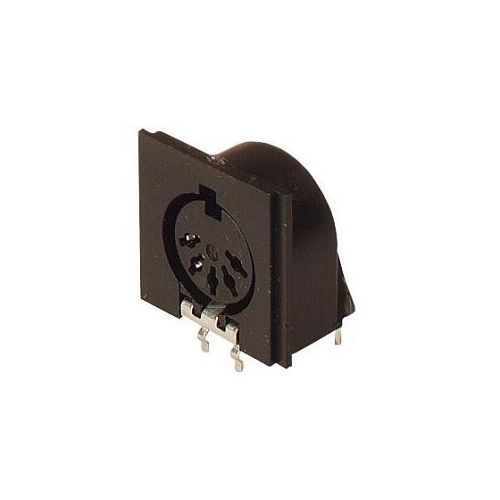

MAB 5 SH Black | 931744500 | 5 Pin DIN Socket
£0.66
Part Number 931744500 (10 in stock)
5 Pin DIN Female Panel Mounted Socket for PCBs
| Complete Electronics Part No. | 931744500 |
|---|---|
| Manufacturers Part No. | 931 744-500 |
| Type: | DIN Socket |
| Number of poles | 5 |
| Shielding: | Not Shielded |
| Termination: | Solder |
| PCB Connector Mounting | PCB Right Angled |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 41524 |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
***This product is being discontinued***
MAB 5 SH Black
Panel-mounted socket for PCBs
***This product is being discontinued***
Last Order Date: June 30th 2024
Un-shielded;
- Plug-in direction parallel to the PCB
- Recommended board thickness 1.5 mm
- Solder joint;
- Additional fixing with screws (not supplied)
- Female,
- 5 pole
- Rated voltage: AC/DC 34 V
- Rated current: 4 A
