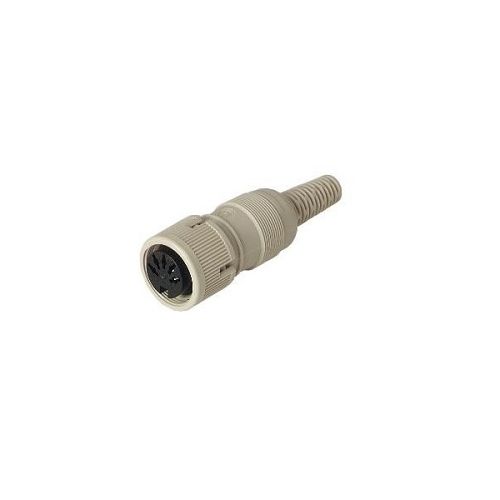

MAK 3100 S Grey | 930764517 | 3 Pin Din Socket
3 Pin DIN, Female Straight Socket with locking ring
| Complete Electronics Part No. | 930764517 |
|---|---|
| Manufacturers Part No. | 930 764-517 |
| Type: | DIN Socket |
| Number of poles | 3 |
| Termination: | Solder |
| Mounting: | Cable Mount with Locking Ring |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 41524 |
| Cable Entry: | Straight |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAK 3100 S Grey
Socket with locking ring
- Solder joint.
- Female
- 3 pole.
- Cable diameter: 5.5 mm,
- Rated voltage: AC/DC 34 V,
- Rated current: 4 A.
***This product is being discontinued***
Last Order Date: June 30th 2024
