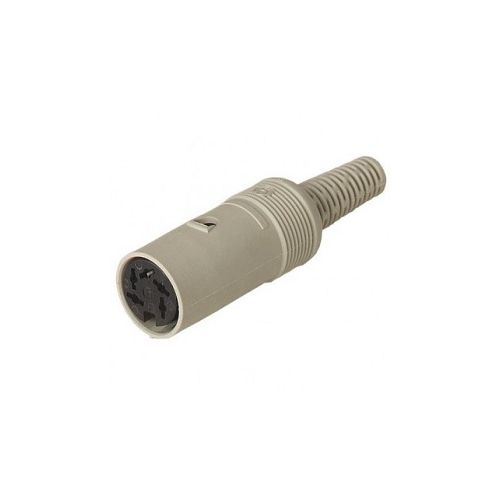

MAK 50 | 930151517 | 5 Pin DIN Socket
5 Pin DIN Straight Socket
| Complete Electronics Part No. | 930151517 |
|---|---|
| Manufacturers Part No. | 930 151-517 |
| Type: | DIN Socket |
| Number of poles | 5 |
| Termination: | Solder |
| Mounting: | Cable |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 45322 |
| Cable Entry: | Straight |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAK 50
Socket with insulated case
***This product is being discontinued***
Last Order Date: June 30th 2024
- Solder joint
- Female
- 5 pole
- Cable diameter: 5.5 mm
- Rated voltage: AC/DC 34 V
- Rated current: 4 A
