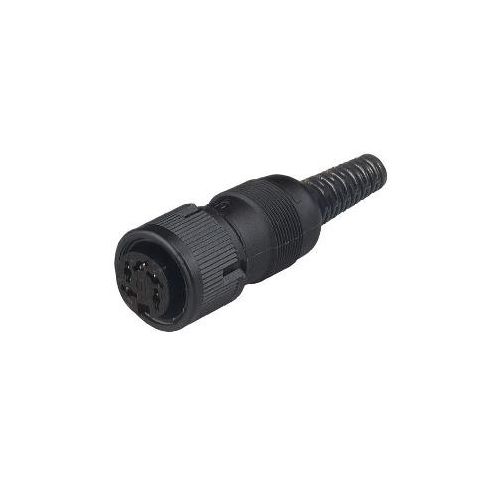

MAK 5100 UM Black | 931176100 | 5 Pin DIN Socket
5 Pin DIN Straight Socket
| Complete Electronics Part No. | 931 176-100 |
|---|---|
| Manufacturers Part No. | 931176100 |
| Type: | DIN Socket |
| Number of poles | 5 |
| Termination: | Solder |
| Mounting: | Cable Mount with Locking Ring |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 45322 |
| Cable Entry: | Straight |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAK 5100 UM Black
Socket with locking ring
- Solder joint.
- Female
- 5 pole.
- Cable diameter: 5.5 mm,
- Rated voltage: AC/DC 34 V,
- Rated current: 4 A.
