SMA Plugs
- SMA sub-miniature series are a popular general purpose high performance 50 ohm connector.
- SMA have a screw together coupling with versions available for use up to 11 GHz and feature gold plated bodies and centre contacts.
- SMA connectors are suited to a wide variety of industries from high performance applications in defence and aerospace to general purpose industrial.
- Reverse polarity versions are also available.
-

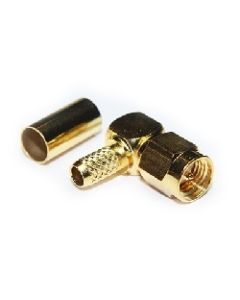

30-105-D3-AK | 30105D3AK | R/A Solder / Crimp Plug.SMA right angle solder crimp plug Centre contact is soldered and the braid is crimped. Suitable for use with RG223 and similar cables in group AK. -

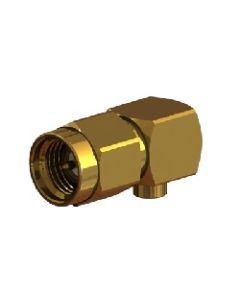

30-108-D3-HA | 30108D3HA | R/A Solder / Solder Plug.SMA direct solder right angle plug for semi-rigid. Centre contact and body are soldered. For use with RG405 (0.085") semi rigid and similar cables in group HA -

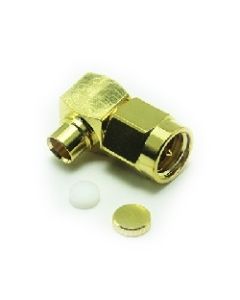

30-108-D3-HB | 30108D3HB | R/A Solder / Solder Plug.SMA direct solder right angle plug for semi-rigid. Centre contact and body are soldered. For use with RG402 (0.141") semi rigid and similar cables in group HB -

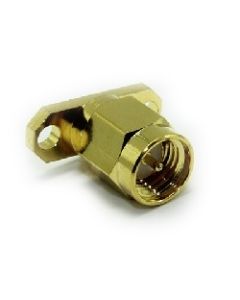

30-319-D3 | 30319D3 | SMA 2 Hole Flange Plug SolderSMA 2 hole flange mount plug with solder spill contact. Contact and body are gold plated. -
30-321-D3 | 30321D3 | SMA 2 Hole Flange Plug SolderSMA 2 hole flange mount plug with extended dielectric. Contact and body are gold plated. -

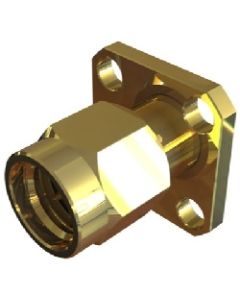

30-323-D3 | 30323D3 | SMA 4 Hole Flange Plug SolderSMA 4 hole flange mount plug with solder tab contact. Contact and body are gold plated. -
30-427-D3-1.22 | 30427D3122 | SMA Plug, 1.22mm PCBSMA end launch PCB plug. Suitable for soldering to a 1.22mm thick PCB. Contact and body are gold plated. -

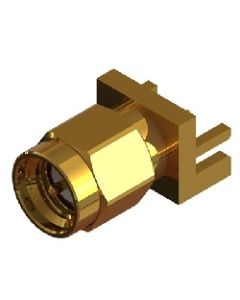

30-428-D3-1.6 | 30428D316 | SMA Plug, 1.60mm PCBSMA end launch PCB plug. Suitable for soldering to a 1.6mm thick PCB. Contact and body are gold plated. -

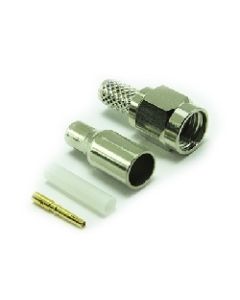

31-005-A3-AD | 31005A3AD | SMA Reverse Polarity Crimp PlugSMA end launch PCB plug. Suitable for soldering to a 1.6mm thick PCB. Contact and body are gold plated. -

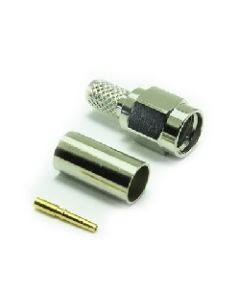

31-005-B3-AH | 31005B3AH | SMA Reverse Polarity Crimp PlugSMA reverse polarity straight full crimp plug. With gold plated contact and nickel plated body. For use with RG58 and similar cables in group AH. -

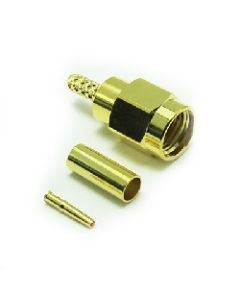

31-005-D3-AD | 31005D3AD | SMA Reverse Polarity Crimp PlugSMA reverse polarity straight full crimp plug. With gold plated contact and body. For use with RG174 and similar cables in group AD. -
31-005-D3-AE | 31005D3AE | SMA Reverse Polarity Crimp PlugSMA reverse polarity straight full crimp plug. With gold plated contact and body. For use with RD316 and similar cables in group AE.
