ST-B Plugs for Sealing Pierced Membranes

ST-B Plugs for sealing membrane grommets

For KEL-DPU / KEL-DPZ / KEL-DP / KEL-QTA-DP) and DT grommets
Perfect for applications where cables have been removed
UL Type:12
Material: Polyamide
Colour: White
Flame class: UL94-V0, self-extinguishing
Temperature: -40(°C to 120°C
Properties: Halogen-free, Silicone-free
Maintains IP rating

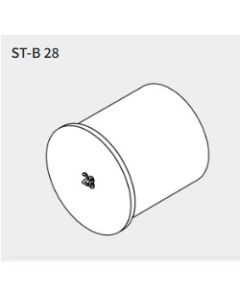

42828 | ST-B28 Membrane Sealing Plug
To seal pierced membranes, For Various Membranes, Diameter: 31mm, Body Diameter: 28mm, Length 30mm, White
42829 | ST-B29 Membrane Sealing Plug
To seal pierced membranes, For Various Membranes, Diameter: 32mm, Body Diameter: 29mm, Length 30mm, White
42830 | ST-B30 Membrane Sealing Plug
To seal pierced membranes, For Various Membranes, Diameter: 33mm, Body Diameter: 30mm, Length 30mm, White

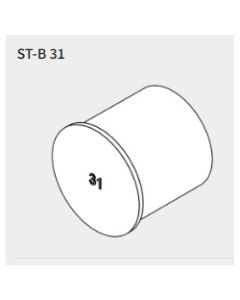

42831 | ST-B31 Membrane Sealing Plug
To seal pierced membranes, For Various Membranes, Diameter: 34mm, Body Diameter: 31mm, Length 31mm, White
42832 | ST-B32 Membrane Sealing Plug
To seal pierced membranes, For Various Membranes, Diameter: 35mm, Body Diameter: 32mm, Length 30mm, White
42833 | ST-B33 Membrane Sealing Plug
To seal pierced membranes, For Various Membranes, Diameter: 36mm, Body Diameter: 33mm, Length 30mm, White

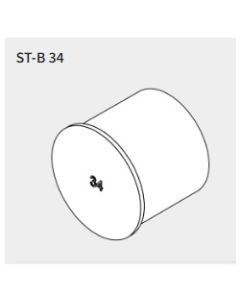

42834 | ST-B34 Membrane Sealing Plug
To seal pierced membranes, For Various Membranes, Diameter: 37mm, Body Diameter: 34mm, Length 31mm, White

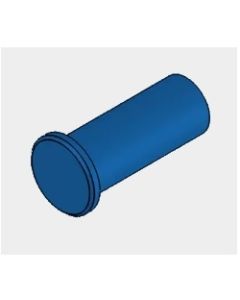

70500 | ST- B-HD 6 Sealing Plug
To seal pierced membranes, For Various Membranes, External Diameter: 8mm, Body Diameter: 6mm, Length: 16mm, Colour: Blue

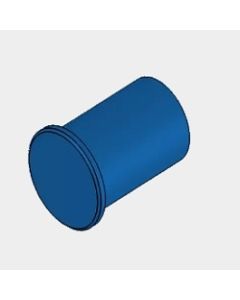

70501 | ST- B-HD 10 Sealing Plug
To seal pierced membranes, For Various Membranes, External Diameter: 12mm, Body Diameter: 10mm, Length: 16mm, Colour: Blue

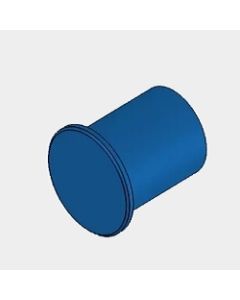

70502 | ST- B-HD 12 Sealing Plug
To seal pierced membranes, For Various Membranes, External Diameter: 15mm, Body Diameter: 12mm, Length: 16mm, Colour: Blue

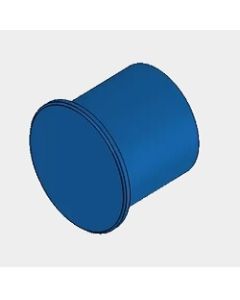

70503 | ST- B-HD 16 Sealing Plug
To seal pierced membranes, For Various Membranes, External Diameter: 19mm, Body Diameter: 16mm, Length: 16mm, Colour: Blue

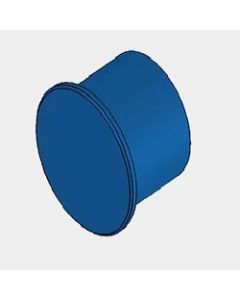

70504 | ST- B-HD 22 Sealing Plug
To seal pierced membranes, For Various Membranes, External Diameter: 25mm, Body Diameter: 22mm, Length: 21mm, Colour: Blue
