Lapp NYY Series - Direct Burial Cable
Direct burial PVC cable
Product features
- Flame-retardant according IEC 60332-1-2
- Current rating according to HD 603/VDE 0276-603, Part 3-G, Table 14
Product Make-up
- Bare copper wire conductor
- Abbreviations "re", "rm", "se", "sm":
- r = round conductor form;
- s = sectorial conductor form;
- e = single-wire conductor;
- m = multi-wire conductor;
- Core insulation: Based on PVC
- Filling compound over the core assembly
- Outer sheath: Based on PVC
Protective conductor:
- J = with GN-YE protective conductor
- O = without protective conductor
Temperature range: During installation: -5°C to +50°C
Fixed installation: -40°C to +70°C
-
15500263 | NYY-J 5G4 RE | Direct Burial CableFixed installation, direct burial, PVC cable, 5 Core, Conductor Diameter: 4mm² -
15500273 | NYY-J 5G6 RE | Direct Burial CableFixed installation, direct burial, PVC cable, 5 Core, Conductor Diameter: 6mm² -
1550030 | NYY-J 1G25 RM | Direct Burial CableFixed installation, direct burial, PVC cable, Single Core, Conductor Diameter: 25mm² -
1550032 | NYY-J 1G50 RM | Direct Burial CableFixed installation, direct burial, PVC cable, Single Core, Conductor Diameter: 50mm² -
1550033 | NYY-J 1G70 RM | Direct Burial CableFixed installation, direct burial, PVC cable, Single Core, Conductor Diameter: 70mm² -
1550037 | NYY-J 1G185 RM | Direct Burial CableFixed installation, direct burial, PVC cable, Single Core, Conductor Diameter: 185mm² -

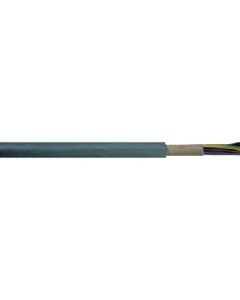

1550038 | NYY-J 1G35 RM | Direct Burial CableFixed installation, direct burial, PVC cable, Single Core, Conductor Diameter: 35mm² -
15500583 | NYY-J 3G4 RE | Direct Burial CableFixed installation, direct burial, PVC cable, 3 Core, Conductor Diameter: 4mm² -
15500593 | NYY-J 3G6 RE | Direct Burial CableFixed installation, direct burial, PVC cable, 3 Core, Conductor Diameter: 6mm² -
15500603 | NYY-J 3G10 RE | Direct Burial CableFixed installation, direct burial, PVC cable, 3 Core, Conductor Diameter: 10mm² -
15500613 | NYY-J 3G16 RE | Direct Burial CableFixed installation, direct burial, PVC cable, 3 Core, Conductor Diameter: 16mm² -
15500713 | NYY-J 3G25 RM/16 RE | Direct Burial CableFixed installation, direct burial, PVC cable, 3 Core, Conductor Diameter: 25mm²
