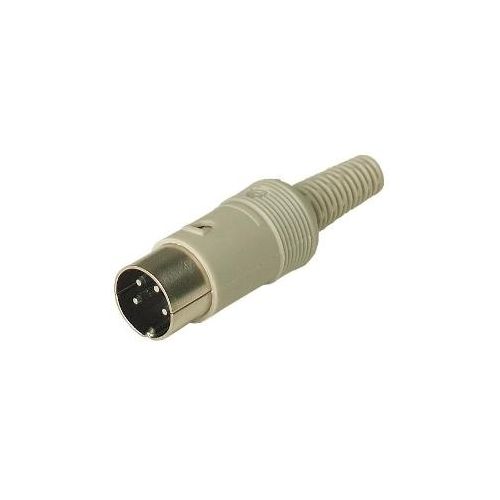

MAS 40 UM Grey | 931018117 | 4 Pin DIN Plug
4 Pin DIN Straight Plug
| Complete Electronics Part No. | 931 018-117 |
|---|---|
| Manufacturers Part No. | 931018117 |
| Type: | DIN Plug |
| Number of poles | 4 |
| Termination: | Solder |
| Mounting: | Cable |
| Socket / PIN | PIN |
| Pole Arrangement DIN | DIN 41524 |
| Cable Entry: | Straight |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAS 40 UM Grey
Plug with insulated handle
***This product is being discontinued***
Last Order Date: June 30th 2024
- Solder joint.
- Male
- 4 pole.
- Cable diameter: 5.5 mm,
- Rated voltage: AC/DC 34 V,
- Rated current: 4 A.
- UM = industry package, box; individual parts not assembled, sorted
