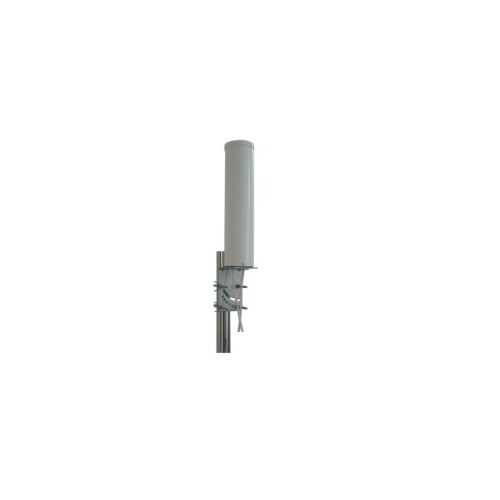

MIMO-PLUS LTE/5G | BM-02872 | Rugged MIMO Antenna
Rugged MIMO Wall & Pole Mounted Antenna, 5G NR, LTE-4G, CELLULAR (2G, 3G), High efficiency , robust wide band antenna
| Complete Electronics Part No. | MIMOPLUSLTE5G |
|---|---|
| Manufacturers Part No. | MIMO-PLUS LTE/5G |
| Antenna Type: | Wall/Pole Mount |
Description
Rugged MIMO Wall & Pole Mounted Antenna
5G NR, LTE-4G, CELLULAR (2G, 3G)
- High efficiency , robust wide band antenna
- Approved for global network use
- RoHS 2011/65/EU & RoHS3 (2015/863/EU compliant)
- Dimensions: 483mm (H) x 77mm (D) x 75mm (W)
- Weight: 1.264 Kg
- Construction Material: UV resistant ABS / Galvanised Steel Bracket
- Wall Fixed or Pole Mounted (35-55mm Diameter)
- Rated wind velocity : 210Km per hour
- Temperature Range:-40°C to +85°C
- Ingress Protection: IP66
- Max Power: 50W (All Bands)
- Impedance: 50ohm
- Polarisation: Vertical
- Radiation Pattern: Omni directional
- Radiator Type: Folded Dipole (x2)
- Cable type / Length: RG58 (White PVC Jacket) / 2 x 5000mm
- 2 x SMA Male
Peak Gain (Elements 1 & 2)
- 5 G N R + LTE 700 + GSM 900: @ 617 - 960 MHz; 3.2dBi
- 5G NR + LTE + 3G + GSM 1800: @ 1427 - 2690 MHz; 7.2dBi
- 5G NR + LTE + 3G: @ 3300 - 5000 MHz; 5.1dBi
- 5G NR + LTE (High): @ 5150 - 5925 MHz; 5.1dBi
