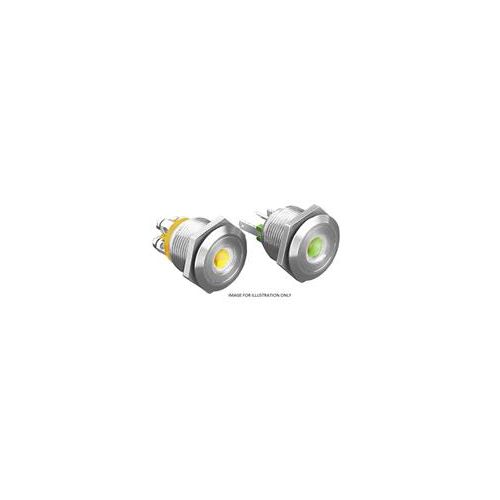

MPI001/28/D1/12 | MPI00128D112 | SP Switch
Stainless Steel Illuminated Vandal Resistant Switch S.P Push To Make Tactile Momentary Action Max Rating : 50mA / 24Vdc
| Complete Electronics Part No. | MPI00128D112 |
|---|---|
| Manufacturers Part No. | MPI001/28/D1/12 |
| Switch Action: | SP Push To Make, Tactile, Momentary |
| Max Rating | 50mA / 24Vdc |
| Termination: | 2.8mm Solder Tabs |
| Illumination | Red / Green |
Description
MPI00128D112
Stainless Steel Illuminated Vandal Resistant Switch
- S.P Push To Make Tactile Momentary Action
- Max Rating : 50mA / 24Vdc
- Mounting: Front Panel
- Termination: 2.8 mm Tab
- Thread Size 18.97mmx 26TPI
- Operating Temp: -30C to +70C
- Switch Body and Button: Stainless Steel
- Moulding: UL94V-0 Rated Polyamide Nylon
- IP Rating: IP66
