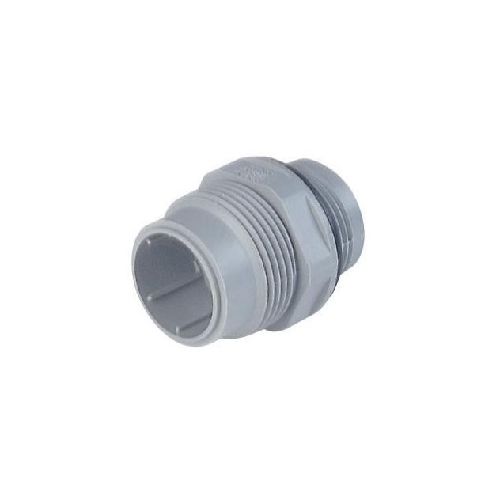

N6R AM 4 | 931592003 | Connector
6 Pole + Earth Panel mount connector with contact bearer in the casing. PG 16
| Complete Electronics Part No. | 931 592-003 |
|---|---|
| Manufacturers Part No. | 931592003 |
| Type: | Panel Mount Connector |
| Standard | DIN 43651 |
| Termination: | Crimp |
| Number of poles | 6+PE |
| Male/Female: | Male |
| Voltage: | AC/DC 250V |
| Rated Current: | 10A |
| Cable Entry: | Straight |
| Cable Gland Size: | PG16 |
| IP Rating: | IP65 |
Description
N6R AM 4
Panel-mounted connector with contact bearer in the casing.
- Male, 6 pole + Earth. PG16.
- Suitable cables: 0.5 mm2 to 1.5 mm2.
- Rated current: 10 A.
- Rated voltage: AC/DC 250 V.
- Crimps not included – please order separately
