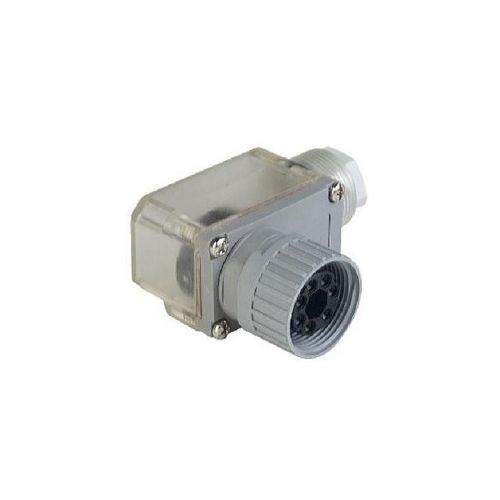

N6R FF S 11 | 932194112 | Connector
6 Pole + Earth Angled cable socket with strain relief by means of a clamping cage and a transparent cap for installation of the LED insert. PG 11
| Complete Electronics Part No. | 932194112 |
|---|---|
| Manufacturers Part No. | 932 194-112 |
| Type: | Cable Socket |
| Standard | DIN 43651 |
| Termination: | Screw |
| Number of poles | 6+PE |
| Male/Female: | Female |
| Voltage: | AC/DC 250V |
| Rated Current: | 10A |
| Cable Entry: | Right Angled |
| Cable Gland Size: | PG11 |
| IP Rating: | IP65 |
Description
N6R FF S 11
Female, 6 pole + Earth angled cable socket
- Strain relief by means of a clamping cage
- Transparent cap for installation of the LED insert.
- DIN EN 175201-804
- Cable diameter: 7 mm to 9 mm.
- Suitable cables: 0.5 mm2 to 1.5 mm2.
- Rated current: 10 A.
- Rated voltage: AC/DC 25
