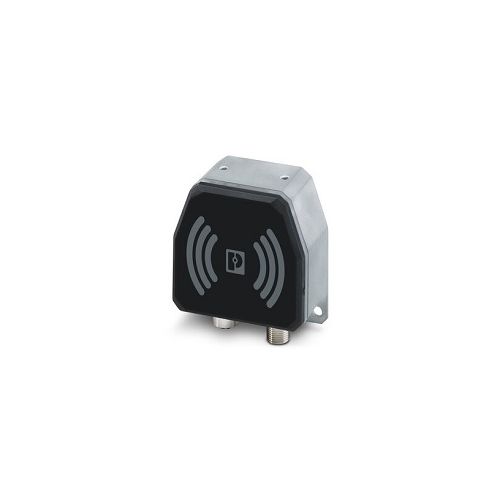

NEARFI D ETH B | 1234232 | Inductive Coupler
NearFi, base coupler for contactless real-time Ethernet transmission, 100 Mbps, full duplex, M12 connection A coded
| Complete Electronics Part No. | 1234232 |
|---|---|
| Manufacturers Part No. | 1234232 |
| Ethernet Product Type: | Inductive Coupler |
Description
Inductive Coupler - NEARFI D ETH B
- Contactless - and therefore no wear and no maintenance
- Protocol-independent, latency-free Ethernet real-time communication
- With 100 Mbps (full duplex)
- All-round visible diagnostics with light ring on the housing
- High degree of mounting freedom with flexible proximity options
- Degree of protection: IP65
- Connection method: M12 A coded
- Supply Voltage: 19 V DC ... 30 V DC
- Typical current consumption: 155 mA (at 24 V DC, at 25 °C)
- Transient protection, polarity protection
- Ethernet interface: M12 D coded
- A remote coupler is required for operation..
- Width: 80 mm
- Height: 86 mm
- Depth: 39 mm.
- Operating Temperature: -20 °C ... 65 °C (observe derating)
- Weight per Piece (excluding packing): 480 g
- Part Number 1234232
- Customs tariff number: 85176200
- Country of origin: DE
