OpenBAT Configurable Access point
Rugged wireless LAN access point and/or client for use in industrial environments.
| Complete Electronics Part No. | OpenBAT |
|---|---|
| Manufacturers Part No. | OpenBAT |
| Ethernet Product Type: | WLAN Access Point / Client |
Description

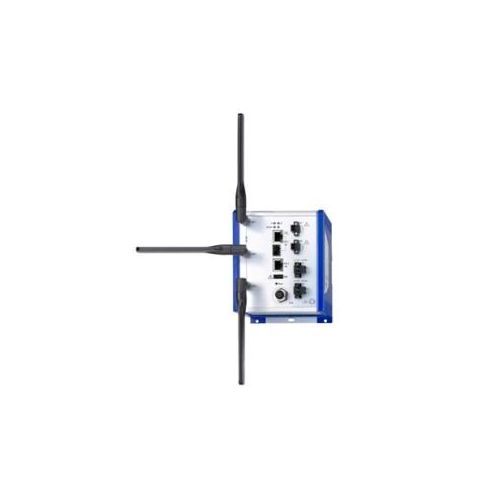

OpenBAT Access point - Configurable
- The access points in the new OpenBAT family can be mounted on DIN rails (BAT-R) or installed on walls or masts in indoor and outdoor (BAT-F)
- OpenBAT family offers a unique platform concept that permits tailor-made solutions
- Rugged wireless LAN access point and/or client for use in industrial environments
- Robust metal housing
- Available with or without conformal coating
- Operating temperature range of 0°C to +60°C or -40°C to +70°C
- All versions support the IEEE 802.11n transmission standard, with PROFINET, EtherNet/IP, Public Spot and VPN Gateway as options
- Access point has one or two wireless modules and Gigabit Ethernet ports
- M12 connection technology (IP67 version)
- One port is configurable as a combo port (fiber optic/twisted pair)
- A serial M12-RS232 interface and a USB port are also provided
- PoE power packs for IEEE 02.3af, 24/48 V DC, 60/120/250 V DC or 110/230 V AC is available
*** This product is fully configurable ***
*** Download the datasheet or use the link below to go to the OpenBAT Configurator ***
