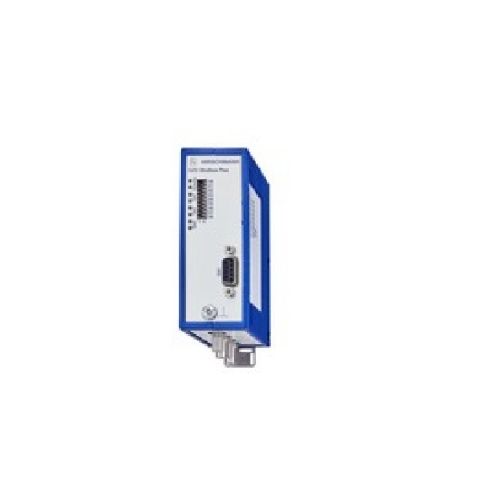

OZD MODBUS G12 | 942148010 | Interface Converter
Interface Converter electrical/optical for Modbus-field bus networks ***Discontinued***
| Complete Electronics Part No. | 942148010 |
|---|---|
| Manufacturers Part No. | 942 148-010 |
| Ethernet Product Type: | Interface Converter |
| Field Bus Type | Modbus |
Description
OZD MODBUS G12
Belden is discontinuing the Hirschmann fiber-optic repeaters for Geniusbus and Modbus Plus, effective June 30th, 2021.
No suggested alternative.
Interface converter for Modbus field bus networks
Electrical/Optical
Repeater Function
For Quartz Glass FO and PCF (HCS)
2 x Optical
4 x BFOC 2.5 (STR) socket
1 x Electrical: Sub-D 9 pin
Operating Voltage: 24 VDC (18 to 32 VDC)
Current Consumption: max 160mA
Operating Temperature: 0-+60 °C
Replaces OZD Modbus G12 / 943 740-021
