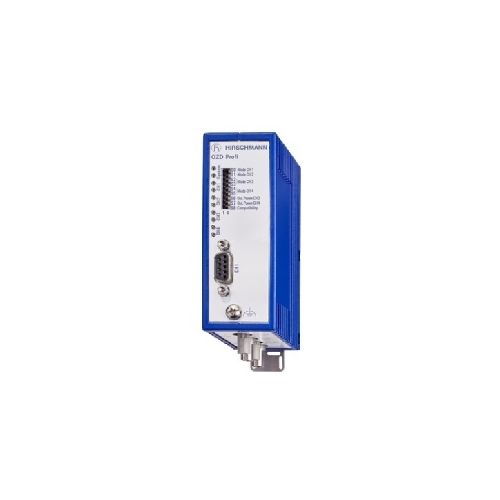

OZD Profi 12M P11 | 942148007 | Interface Converter
Interface Converter electrical/optical for PROFIBUS-field bus networks
| Complete Electronics Part No. | 942148007 |
|---|---|
| Manufacturers Part No. | 942 148-007 |
| Ethernet Product Type: | Interface Converter |
| Field Bus Type | Profibus |
Description
OZD Profi 12M P11
Interface converter for Profibus field bus networks
Electrical/Optical
Repeater Function
For Plastic FO
Approval for ATEX zone 2 (Class 1, Div 2)
1 x Optical
2 x BFOC 2.5 (STR) socket
1 x Electrical Sub D 9 Pin
Operating Voltage: 24 VDC (18 to 32 VDC)
Current Consumption: max 190mA
Operating Temperature: 0 to +60 °C
Part Number: 942148007
Replaces OZD Profi 12M P11 / 943 728-221
