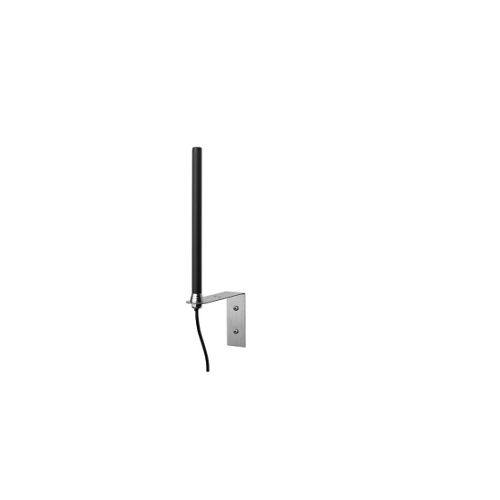

PARED LTE/4G | BM-02 Range | Wall Mounted Antenna
Wideband Wall Mounted planar Antenna LTE-4G, Cellular (2G, 3G), WLAN 2.4GHz, cable length and connector to customer specification
| Complete Electronics Part No. | BM02Range |
|---|---|
| Manufacturers Part No. | BM-02 Range |
| Antenna Type: | Wall/Pole Mount |
Description
Wideband Wall Mounted Antenna
- LTE-4G, cellular (2G, 3G) WLAN 2.4 GHz
- Omni Directional
- LTE 700 +GSM 900: 698 - 960 MHz
- GSM 1800: 1710 - 1880 MHz
- UMTS: 1920 - 2170 MHz
- WLAN + LTE (High): 2300 - 2700 MHz
- Max Power @ 30 °C: 25 Watts (All frequencies)
- Return Loss (VSWR) ≥ 2:1 (all bands)
- Impedance: 50 ohm
- Polarisation: Linear
- Dimensions: 220mm (H) Whip Tube x 16 (D) whip diameter
- Weight: 355g
- Material: ABS UV stable UL94 VO (whip)
- Bracket Material: Stainless Steel
- Operating Temperature: -40 to +85°C
- Ingress Protection: IP66 (IEC 60529
- Cable types: LL 195 50 Ohm Low Loss / LMR100 50Ohm Low Loss / RG58
- Available with a choice of cable length and connector
