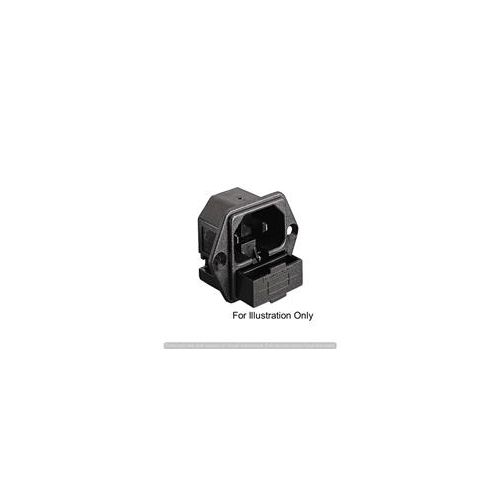

PF0007/63 | PF000763 | Bulgin IEC Connector
IEC Connector, Male , 2 Pole Class II, C18, Single Fuse (5 x 20mm), Flanged Mount, Termination 6.3mm tab, Black
| Complete Electronics Part No. | PF000763 |
|---|---|
| Manufacturers Part No. | PF0007/63 |
| Type: | Panel Mount Connector |
| IEC Type | IEC Outlet - Shuttered |
| IEC Class | Sheet C18 Class II |
| Mounting: | Flange Fixing |
| Male/Female: | Male |
| Fuse Size: | 5 x 20mm |
| Termination: | 6.3mm Spade Terminals |
| Rated Voltage: | 250V |
| Rated Current: | 10A |
| Connector Colour: | Black |
Description
PF000763
Bulgin IEC Connectorr
- Male
- Flanged Mount
- Fuse Contacts Isolated
- Termination: 6.3mm tab
- EN60320-1
- Sheet C18 Class II
- 2 Pole
- 5 x 20mm Fuse
- Colour: Black
- Rated Voltage:250V ac
- Rated Current 10A
- No Earth Pin
