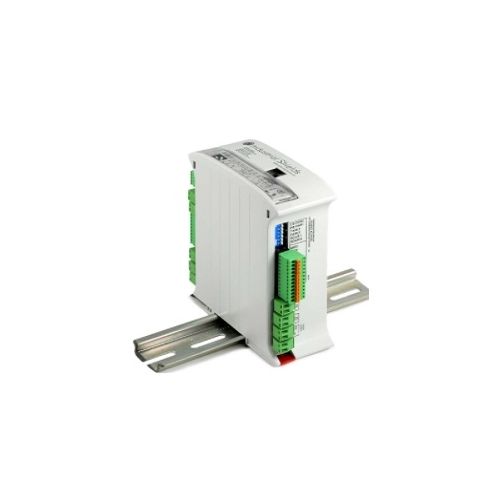

PLC Arduino Ardbox & DALI 20 I/Os Relay | 004001001300
PLC Arduino Ardbox & DALI 20 I/Os Relay HF Modbus
| Complete Electronics Part No. | 004001001300 |
|---|---|
| Manufacturers Part No. | 004001001300 |
Description
Arduino Ardbox & DALI 20 I/Os Relay HF Modbus
Arduino-based PLC
This is the first equipment based on the Arduino technology designed for a professional use. This PLC has 21I/Os. It also contains several communication ports which provide more flexibility and control. The M-DUINO family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…
Programming Software
This PLC can be programmed using the Arduino IDE platform.
Instantaneous connection and coding
The PLC M-DUINO is programmed through the USB ports. This PLC can also be programed through Ethernet port remotely. This offers and immediate access to program, mantain and control. Also you can continuously monitor the status for all the variables, inputs, outputs, etc.
Inputs (Arduino Mega included) ▼
- 10 Inputs:
Outputs (Arduino Mega included) ▼
- 10 Outputs
Communications ▼
- (1x) I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)
- (1x) HALF/FULL Duplex RS-485 port.
- TCP IP / Modbus TCP. / Modbus RTU
- Industrial Protocols
Other information ▼
- PLC measures (cm): 100x75x115
- DIN Rail mounting
- Max. consum.: 1.2A
- Flash Memory: 256kB (8kB for bootloader)
- SRAM: 8kB
- EEPROM: 4kB
- Clock Speed: 16MHz
- *Rx,Tx pins are not abailable using RS485. For SPI you need to choose another pin for Select Function (You can choose, SDA, SCL, Rx, Tx, Pins of Arduino)
