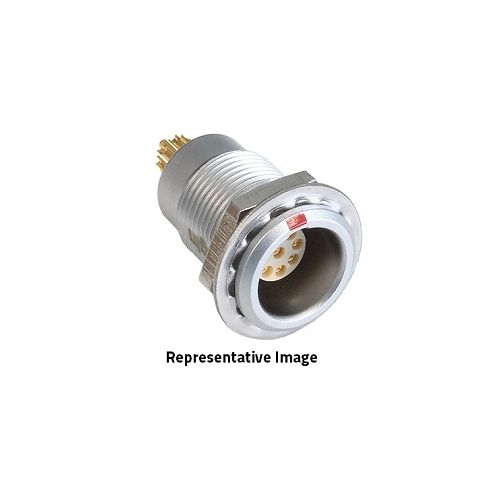

PPCEGG0B05CLL | 5 Contacts Fixed Socket 0X Series
5 Contacts Fixed Socket 0X Series Connector, Max current 6.5 Amps, Max Panel Thickness: 7.0mm Ingress Protection: IP50
| Complete Electronics Part No. | PPCEGG0B05CLL |
|---|---|
| Manufacturers Part No. | PPCEGG0B05CLL |
| Bulgin Series | 0X Series |
| Number of poles | 5 |
| Male/Female: | Female |
Description
PPCEGG0B05CLL
5 Contacts Fixed Socket 0X Series Push Pull Connector
- Max Current: 6.5 Amps
- Terminal Diameter: 0.7mm
- Contact Pin Material: Phosphor bronze gold plated 3u"
- M9 x 0.6mm Thread
- Nut installation 2.5Nm
- Diameter Over Coupling Ring: 10mm
- ROHS compliance
- Available in Straight Plug version
- Max Panel Thickness: 7.0 mm
- Panel Cutout: 9.10mm x 8.30mm
- IP50 rated
- Temp:--50°C to +200°C
- Solder Terminals
- Durability >4500 cycles
- Operating humidity up to 95%
- Salt Spray Corrosion Test >144h
- 360-degree screening for full EMI shielding
- High packing density for space savings on panel mounts
- Multiple contacts from 2 to 30
- Secure Push-Pull self-latching system
- Multiple key options to avoid mismating
- Solder contacts
- Durability: >4500 cycles
- Mates with:- PPCFGG0B05CLAD
