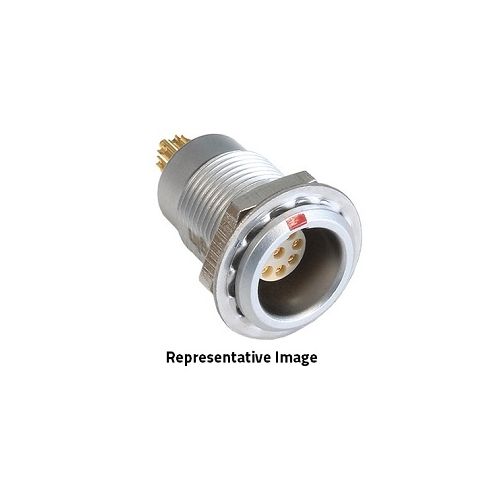

PPCEGG0B09CLL | 9 Contacts Fixed Socket 0X Series

9 Contacts Fixed Socket 0X Series Connector, Max current 2 Amps, Max Panel Thickness: 7.0mm Ingress Protection: IP50
More Information
Complete Electronics Part No. PPCEGG0B09CLL
Manufacturers Part No. PPCEGG0B09CLL
Bulgin Series 0X Series
Number of poles 9
Male/Female: Female
Description

PPCEGG0B09CLL

9 Contacts Fixed Socket 0X Series Push Pull Connector

  • Max Current: 2 Amps
  • Terminal Diameter: 0.5mm
  • Contact Pin Material: Phosphor bronze gold plated 3u"
  • M9 x 0.6mm Thread
  • Nut installation 2.5Nm
  • Diameter Over Coupling Ring: 10mm
  • ROHS compliance
  • Available in Straight Plug version
  • Max Panel Thickness: 7.0 mm
  • Panel Cutout: 9.10mm x 8.30mm
  • IP50 rated
  • Temp:--50°C to +200°C
  • Solder Terminals
  • Durability >4500 cycles
  • Operating humidity up to 95%
  • Salt Spray Corrosion Test >144h
  • 360-degree screening for full EMI shielding
  • High packing density for space savings on panel mounts
  • Multiple contacts from 2 to 30
  • Secure Push-Pull self-latching system
  • Multiple key options to avoid mismating
  • Solder contacts
  • Durability: >4500 cycles
  • Mates with:- PPCFGG0B09CLAD
