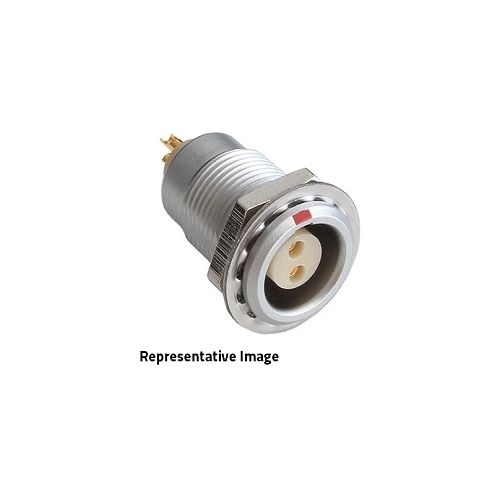

PPCEGG1B03CLL | 3 Contacts Fixed Socket 1X Series
3 Contacts Fixed Socket 1X Series Connector, Max current 12 Amps, Max Panel Thickness: 7.5mm Ingress Protection: IP50
| Complete Electronics Part No. | PPCEGG1B03CLL |
|---|---|
| Manufacturers Part No. | PPCEGG1B03CLL |
| Bulgin Series | 1X Series |
| Number of poles | 3 |
| Male/Female: | Female |
Description
PPCEGG1B03CLL
3 Contacts Fixed Socket 1X Series Push Pull Connector
- Max Current: 12 Amps
- Terminal Diameter: 1.3mm
- Contact Pin Material: Phosphor bronze gold plated 3u"
- M12 x 1.0mm Thread
- Nut installation 4.5Nm
- Diameter Over Coupling Ring: 14mm
- ROHS compliance
- Available in Straight Plug version
- Max Panel Thickness: 7.5 mm
- Panel Cutout: 12.10mm x 10.60mm
- IP50 rated
- Temp:--50°C to +200°C
- Solder Terminals
- Durability >4500 cycles
- Operating humidity up to 95%
- Salt Spray Corrosion Test >144h
- 360-degree screening for full EMI shielding
- High packing density for space savings on panel mounts
- Multiple contacts from 2 to 30
- Secure Push-Pull self-latching system
- Multiple key options to avoid mismating
- Solder contacts
- Durability: >4500 cycles
- Mates with:- PPCFGG1B03CLAD
