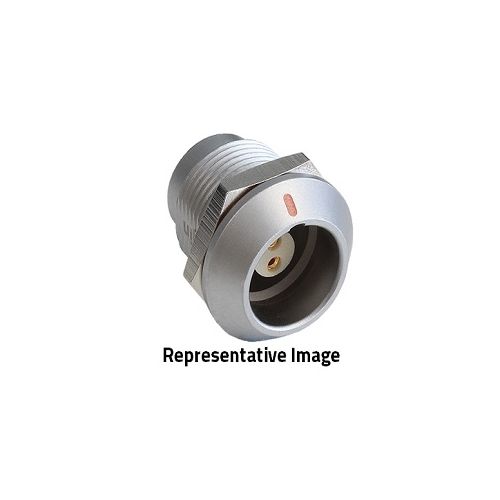

PPCEGG1K04CLL | 4 Contacts Fixed Socket 1Y Series
4 Contacts Fixed Socket 1Y Series Push Pull Connector, Max current 10 Amps, Diameter over coupling ring: 19.9 mm
| Complete Electronics Part No. | PPCEGG1K04CLL |
|---|---|
| Manufacturers Part No. | PPCEGG1K04CLL |
| Bulgin Series | 1Y Series |
| Number of poles | 4 |
| Male/Female: | Female |
Description
PPCEGG1K04CLL
4 Pole Female Push Pull Connector
- 4 Contacts Fixed Socket 1Y Series Push Pull Connector
- Max Current: 10 A
- Diameter over coupling ring: 19.9 mm
- M16x1.0mm Thread
- Fixing nut material: Nickel plated brass
- Max panel thickness: 9.5mm
- Panel cut out: 16.10mm x14.60mm
- Terminal Diameter: 0.9 mm
- Nut Installation torque 7.0Nm
- Available in Straight Plug version
- ROHS compliance
- IP66 rated
- Temp:-50 C to +200 C
- Solder Terminals
- Durability >4500 cycles
- Operating humidity up to 95%
- Salt Spray Corrosion Test >144h
- 360-degree screening for full EMC shielding
- Keying system (G key standard) for connector alignment
- Multiple key features to avoid cross mating of similar connectors
- High packing density for space savings on panel mounts
- Mates with PPCFGG1K04CLAD
