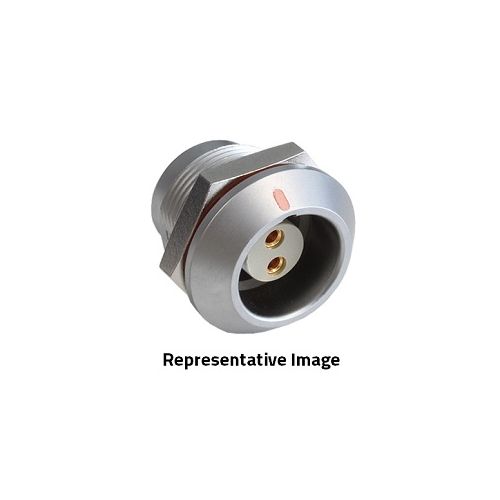

PPCEGG2K03CLL | 3 Contacts Fixed Socket 2Y Series
3 Contacts Fixed Socket 2Y Series Push Pull Connector, Max current 17Amps, Ingress Protection: IP66
| Complete Electronics Part No. | PPCEGG2K03CLL |
|---|---|
| Manufacturers Part No. | PPCEGG2K03CLL |
| Bulgin Series | 2Y Series |
| Number of poles | 3 |
| Male/Female: | Female |
Description
PPCEGG2K03CLL
3 Pole Female Push Pull Connector
- 3 Contacts Fixed Socket 2Y Series Push Pull Connector
- Max Current: 17 A
- Diameter over coupling ring: 24.9 mm
- M20x1.0mm Thread
- Max panel thickness: 8.5mm
- Panel cut out: 20.20mmx18.60mm
- Fixing nut material: Nickel plated brass
- Terminal Diameter: 1.6 mm
- Nut Installation torque 9.0Nm
- Available in Straight Plug version
- ROHS compliance
- IP66 rated
- Temp:-50 C to +200 C
- Solder Terminals
- Durability >4500 cycles
- Operating humidity up to 95%
- Salt Spray Corrosion Test >144h
- 360-degree screening for full EMC shielding
- Keying system (G key standard) for connector alignment
- Multiple key features to avoid cross mating of similar connectors
- High packing density for space savings on panel mounts
- Mates with PPCFGG2K03CLAD
