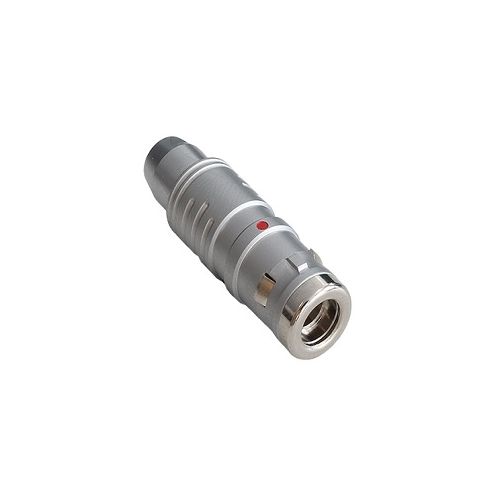

PPCFGG0K02CLAD | 2 Contacts Straight Plug 0Y Series
2 Contacts Straight Plug 0Y Series Push Pull Connector, Max current 10Amps
| Complete Electronics Part No. | PPCFGG0K02CLAD |
|---|---|
| Manufacturers Part No. | PPCFGG0K02CLAD |
| Bulgin Series | 0Y Series |
| Number of poles | 2 |
| Male/Female: | Male |
Description
PPCFGG0K02CLAD
2 Pole Straight Plug Push Pull Connector
- 2 Contacts Straight Plug 0Y Series Push Pull Connector
- Available in Fixed Socket version
- ROHS compliance
- IP66 rated
- Temp:-50 C to +200 C
- Solder Terminals
- Durability >4500 cycles
- Operating humidity up to 95%
- Salt Spray Corrosion Test >144h
- Contact Pin Material: Brass gold plated 3u"
- Locking Sleeve Material: Brass Plated
- Maximum Current: 10 Amps
- Max Cable Entry Size: 5mm
- Min Cable entry size: 4.5mm
- Diameter over Coupling Ring: 10.9mm
- 360-degree screening for full EMC shielding
- Keying system (G key standard) for connector alignment
- Multiple key features to avoid cross mating of similar connectors
- High packing density for space savings on panel mounts
- Mates with PPCEGG0K02CLL
