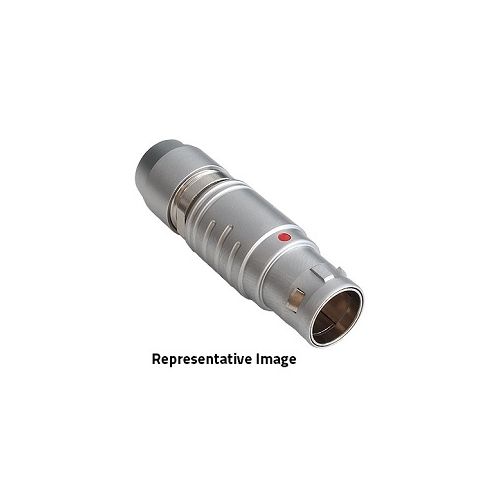

PPCFGG3B22CLAD | 22 Contacts Straight Plug 3X Series
22 Contacts Straight Plug 3X Series Connector, Max current 5.5 Amps, Max Cable Thickness: 11.0 mm Ingress Protection: IP50
| Complete Electronics Part No. | PPCFGG3B22CLAD |
|---|---|
| Manufacturers Part No. | PPCFGG3B22CLAD |
| Bulgin Series | 3X Series |
| Number of poles | 22 |
| Male/Female: | Male |
Description
PPCFGG3B22CLAD
22 Contacts Straight Plug
- 3X Series Push Pull Connector
- Max Current: 5.5 Amps
- Terminal Diameter: 0.7mm
- Max Cable Diameter: 11 mm
- Min Cable Diameter: 10.3mm
- Locking Sleeve Material: Brass Plated
- Brass gold plated 3u"
- Diameter Over Coupling Ring: 18mm
- ROHS compliance
- Available in Fixed Socket version
- IP50 rated
- Temp:--50°C to +200°C
- Solder Terminals
- Durability >4500 cycles
- Operating humidity up to 95%
- Salt Spray Corrosion Test >144h
- 360-degree screening for full EMI shielding
- High packing density for space savings on panel mounts
- Multiple contacts from 2 to 30
- Secure Push-Pull self-latching system
- Multiple key options to avoid mismating
- Solder contacts
- Durability: >4500 cycles
- Mates with:- PPCEGG3B22CLL
