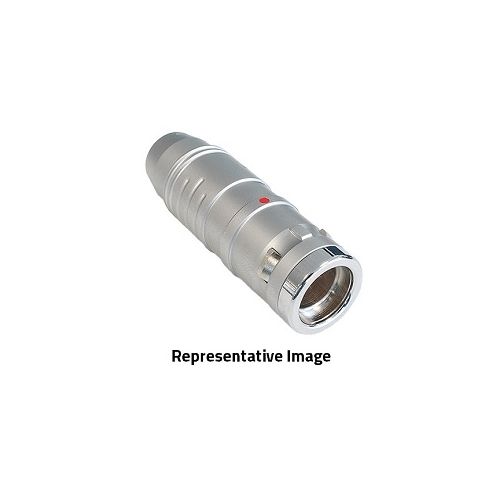

PPCFGG3K12CLAD | 12 Contacts Straight Plug 3Y Series
12 Contacts Straight Plug 3Y Series Push Pull Connector, Max current 9 Amps, Ingress Protection: IP66
| Complete Electronics Part No. | PPCFGG3K12CLAD |
|---|---|
| Manufacturers Part No. | PPCFGG3K12CLAD |
| Bulgin Series | 3Y Series |
| Number of poles | 12 |
| Male/Female: | Male |
Description
PPCFGG3K12CLAD
12 Pole Straight Plug Push Pull Connector
- 12 Contacts Straight Plug
- 3Y Series Push Pull Connector
- Available in Fixed Socket version
- ROHS compliance
- IP66 rated
- Temp:-50 C to +200 C
- Solder Terminals
- Terminal diameter: 0.9 mm
- Durability >4500 cycles
- Operating humidity up to 95%
- Salt Spray Corrosion Test >144h
- Contact Pin Material: Brass gold plated 3u"
- Locking Sleeve Material: Brass Plated
- Maximum Current: 9 Amps
- Max Cable Entry Size: 7 mm
- Min Cable entry size: 6.6mm
- Diameter over Coupling Ring: 19 mm
- 360-degree screening for full EMC shielding
- Keying system (G key standard) for connector alignment
- Multiple key features to avoid cross mating of similar connectors
- High packing density for space savings on panel mounts
- Mates with PPCEGG3K12CLL
