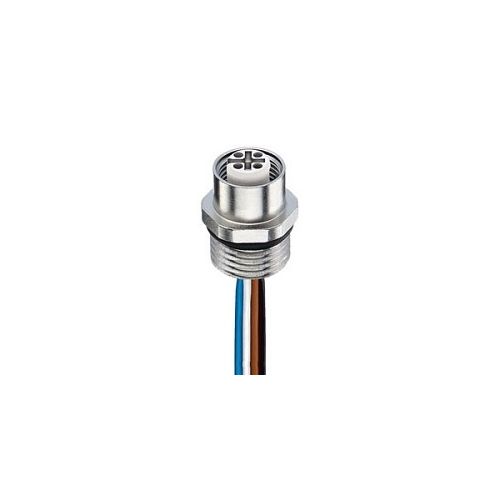

PRKFM 4/2M | 107976 | Cordset
Receptacle Connector, Stainless steel housing, 4 pole, potted
| Complete Electronics Part No. | 107976 |
|---|---|
| Manufacturers Part No. | 107976 |
| Type: | Recptacle Connector |
| Mounting: | Front Mounting |
| Coded Option (Circular) | A |
| Male/Female: | Female M12 |
| Cable Entry: | Straight |
| Number of poles | 4 |
| Rated Voltage: | 250V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 2 Metres |
| IP Rating: | IP67 / 69K |
Description
Receptacle Connector for front mounting
PRKFM 4/2M
Receptacle Connector for front mounting
- Stainless steel housing
- M12 female connector
- Assembled stranded wire
- Solder contacts potted with epoxy
- 4 Poles
- A Coding
- Lead 4 x AWG 22
- Chassis side thread M16 x 1.5 (panel nut RSKFM 16)
- Especially designed for use in food processing equipment
- Cable Length 2 metres
- IP67 / IP69K
