PRKFM 5/0,5 M | 45741 | Connector

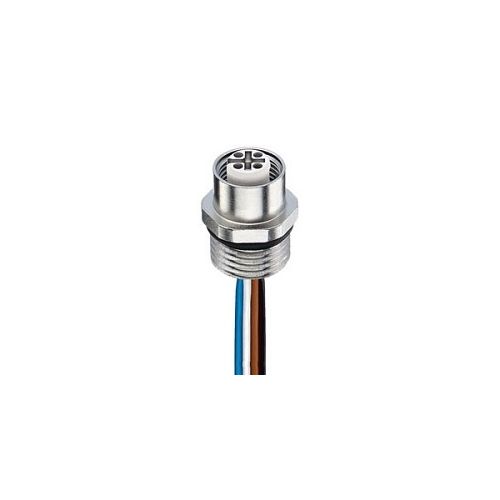

M12 Receptacle Connector, 5 poles, potted
| Complete Electronics Part No. | 45741 |
|---|---|
| Manufacturers Part No. | 45741 |
| Type: | Recptacle Connector |
| Cordset Type: | Single Ended |
| Cordset Gender M12: | M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Straight |
| Number of poles | 5 |
| Rated Voltage: | 63V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 0.5 Metre |
| IP Rating: | IP67 / 69K |
Description
PRKFM 5/0,5 M
M12 Female receptacle Connector for front mounting M12 , 5 poles
- M12 Female connector
- 5 Poles
- Stainless steel housing
- Assembled stranded wire
- Solder Contacts potted with epoxy
- A Coding
- Lead 1 x 0.5 mm², 4 x AWG 22
- Chassis side thread M16 x 1.5 (panel nut RSKFM 16)
- Especially designed for use in food processing equipment
- IP67 / IP69K
