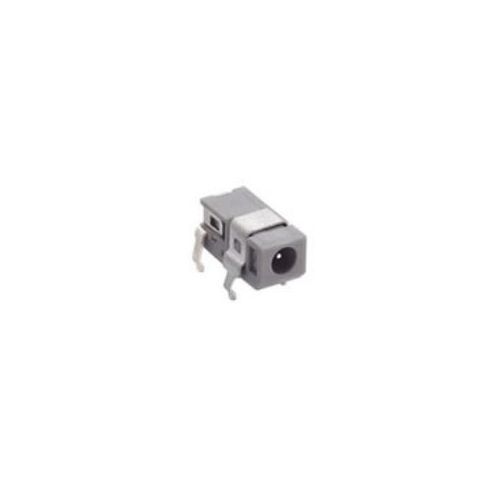

0.65mm | 161303 | PSU Chassis Socket
Power supply chassis socket for printed circuit boards Centre pin diameter 0.65mm
| Complete Electronics Part No. | 161303 |
|---|---|
| Manufacturers Part No. | 1613 03 |
Description
161303
Power supply chassis socket
- acc. to JEITA RC-5320A JSAJ11
- Angular version
- With break contact
- For printed circuit boards
- Diameter opening 2.75 mm
- Diameter center pin 0.65 mm
- Nominal power 2 A
- Nominal voltage ≤ 3.15 V DC
- Temperature range -20 °C/+70 °C
