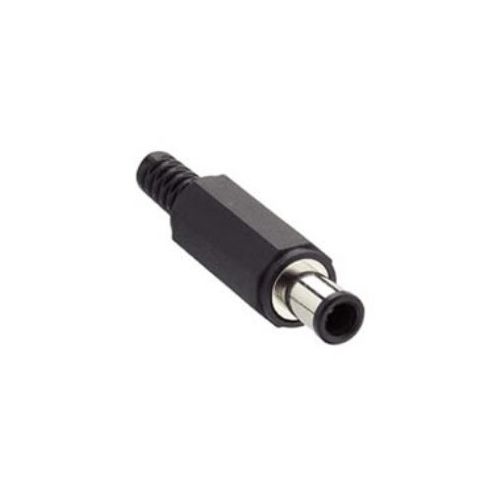

1.4mm | 163605 | 1636 05 | Conector
Power supply plug, Centre pin diameter 1.4mm
| Complete Electronics Part No. | 163605 |
|---|---|
| Manufacturers Part No. | 1636 05 |
Description
1636 05
- Power supply plug acc. to JEITA RC-5320A JSBP5
- Straight version
- With solder eyes and bend protection
- Outer diameter 6.5 mm
- Inner diameter 4.3 mm
- Diameter center pin 1.4 mm
- Nominal power 2 A
- Nominal voltage 18 V DC
- Temperature range -20 °C/+70 °C
