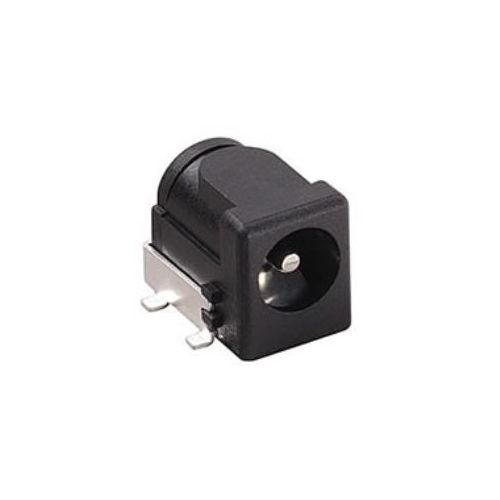

2.45mm | 161315VP3 | 1613 15 VP3 | Connector
Power supply chassis socket for printed circuit boards (SMT) Centre pin diameter 2.45mm
| Complete Electronics Part No. | 161315VP3 |
|---|---|
| Manufacturers Part No. | 1613 15 VP3 |
Description
161315VP3
Power supply chassis socket
- Angular version
- With break contacts
- For printed circuit boards (SMT)
- Diameter opening 6.5 mm
- Diameter center pin 2.45 mm
- Rated current 3.5 A
- Rated voltage 24 V DC
- Temperature range -25 °C/+85 °C
