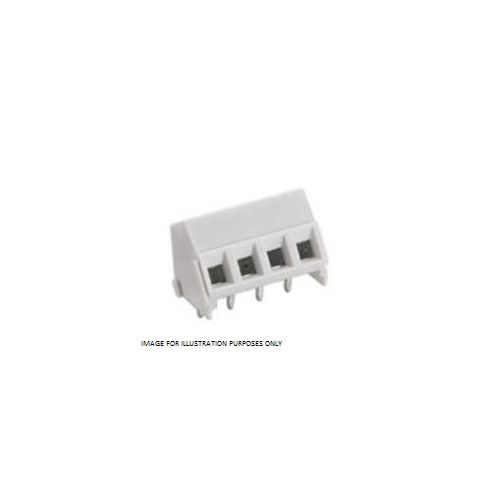

632203 | 6322 03 | Terminal Block
3 Pole Miniature screw terminal block, 35° angular, with test hole
| Complete Electronics Part No. | 632203 |
|---|---|
| Manufacturers Part No. | 6322 03 |
| Terminal Block Type: | Screw |
| Number Of Positions: | 3 |
Description
6322 03
- 3 Pole Miniature screw terminal block with lift clamp
- Without protection against misplacing
- 35° angular, with test hole
- Consecutive placement without loss of pitch
- Rated current 16 A (at Tamb 100 °C)
- Rated voltage 630 V AC
- Rated voltage 300 V AC (UL)/300 V-B (CSA)
- Screw M2.5
- Temperature range -25 °C/+125 °C
