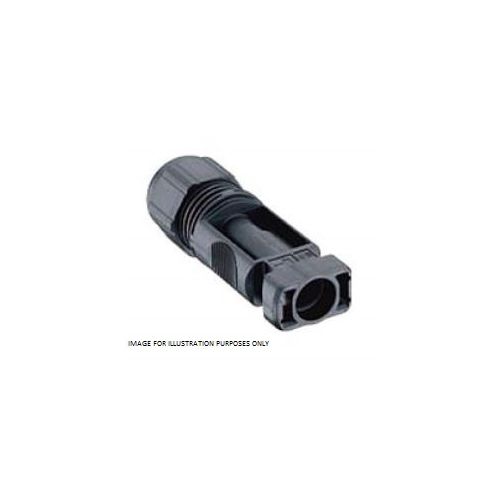

LC4-CP 30-2 2.5 VP19(1) | PV Connector - Male
Photovoltaic connector (plug)
| Complete Electronics Part No. | LC4CP3022.5VP19(1) |
|---|---|
| Manufacturers Part No. | LC4-CP 30-2 2.5 VP19(1) |
Description
LC4-CP 30-2 2.5 VP19(1)
Photovoltaic connector (plug)
- Field-attachable
- Integrated locking and crimp contact
- Contact resistance ≤ 1 mΩ
- Rated current (IEC) LC4-CP 3... 2.5 22 A at Tamb 85 °C LC4-CP 3...4.0 and 6.0 30 A at Tamb 85 °C Rated current (UL)2 35 A at Tamb 20 °C, all sections
- Rated voltage1000 V DC (IEC)/600 V DC (UL)
- Overvoltage category III (8 kV)
- Temperature range -40 °C/+85 °C (IEC) -40 °C/+90 °C (UL) (+115 °C upper limit temperature)
